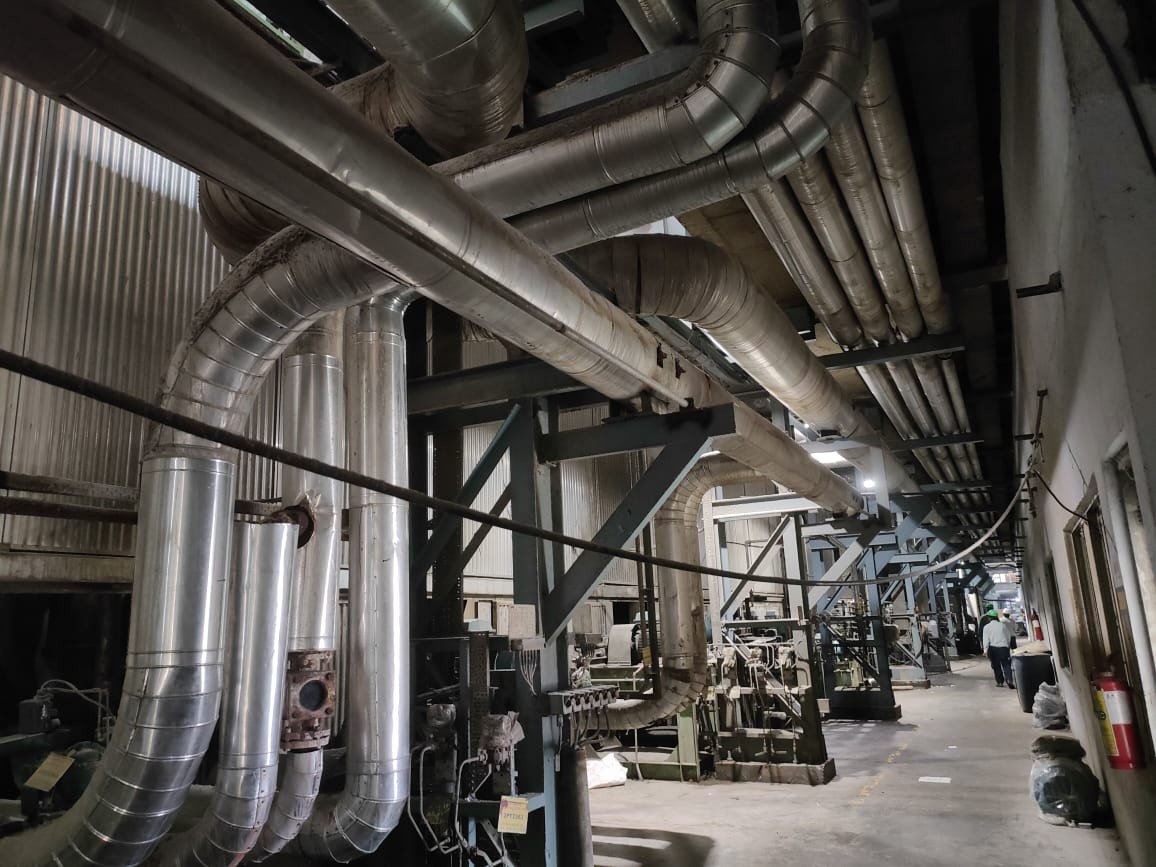

LP Steam Line from EC2 Turbine to Paper Machine 1

14" LP Steam Line – Engineering & Stress Analysis — Client: Bilt Graphic Paper Products Ltd.

DELIVERABLE PHOTO / 3D MODEL

Project Overview

Engineering support for the design and development of a new 14" LP Steam Line from the EC2 Turbine to Paper Machine 1, including routing, line sizing and detailed stress analysis.

Scope of Work & Engineering Deliverables

P&ID Development and Line Sizing

New LP Steam Line Routing through Existing Pipe Racks and Units

Site Surveys and Multiple Site Visits for Existing Plant Assessment

Piping Stress Analysis of approximately 500 m long Steam Line

Tie-in Engineering with the Existing Steam System

Engineering Support for Tie-in Execution within a Minimum Shutdown Window

Resolution of Routing and Execution Challenges within the Existing Plant

Core Technical Services Applied

P&ID & Line SizingPipe Rack Routing500m Line Stress AnalysisTie-in & Minimum Shutdown Support

Project Metadata

Client

Bilt Graphic Paper Products Ltd.

Location

Bhigwan, Pune, India

Duration & Status

Completed & Commissioned

Sector

Power
